SPI - Serial Peripheral Interface

Example available on GitHub. Check liteboard SPI example.

SPI is a full-duplex, master - slave, synchronous serial interface used mainly used in embedded systems.

<uml> ditaa

/————–\ /—————\

SPI master SPI slave 1
SCLK +———–*——>+ SCLK
MOSI +———*-——>+ MOSI
MISO +←—–*--——-+ MISO
SS1 +——---——>+ SS
cGRE SS2 +—–\ cYEL

\————–/ | | | |

                   | | | |       /---------------\
                   | | | |       |  SPI slave 2  |
                   | | | |       |               |
                   | | | \------>+ SCLK          |
                   | | \-------->+ MOSI          |
                   | \-----------+ MISO          |
                   \------------>+ SS            |
                                 |         cYEL  |


  • SCLK - Serial Clock,
  • MOSI - Master Output Slave Input,
  • MISO - Master Input Slave Output,
  • SS - Slave Select

To configure SPI interface following parameters must be defined:

  • clock frequency,
  • clock polarity (CPOL):
    • CPOL=0 - 0 is idle state, 1 is active state,
    • CPOL=1 - 0 is active state, 1 is idle state,
  • clock phase (CPHA):
    • CPHA=0 - data sampling on the first clock edge,
    • CPHA=1 - data sampling on the second clock edge.

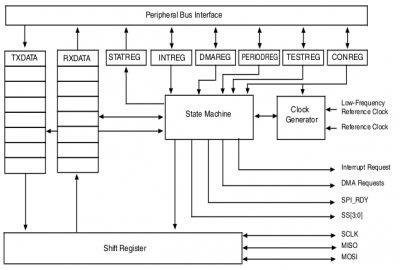

ECSPI block diagram

ECSPI block diagram (source: i.MX 6UltraLite Applications Processor Reference Manual)

i.MX6UL supports up to four Enhanced Configurable Serial Peripheral Interfaces (ECSPI).

Each ECSPI contains a 64 x 32 receive buffer and a 64 x 32 transmit buffer. With data FIFOs, the ECSPI allows rapid data communication with fewer software interrupts.

Key features of the ECSPI include:

  • Full-duplex synchronous serial interface,
  • Master/Slave configurable,
  • Four Chip Select (SS) signals to support multiple peripherals,
  • Transfer continuation function allows unlimited length data transfers,
  • 32-bit wide by 64-entry FIFO for both transmit and receive data,
  • Polarity and phase of the Chip Select (SS) and SPI Clock (SCLK) are configurable,
  • Direct Memory Access (DMA) support,
  • Max operation frequency up to the reference clock frequency.
ecspi1: ecspi@02008000 {
  #address-cells = <1>;
  #size-cells = <0>;
  compatible = "fsl,imx6ul-ecspi", "fsl,imx51-ecspi";
  reg = <0x02008000 0x4000>;
  interrupts = <GIC_SPI 31 IRQ_TYPE_LEVEL_HIGH>;
  clocks = <&clks IMX6UL_CLK_ECSPI1>,
           <&clks IMX6UL_CLK_ECSPI1>;
  clock-names = "ipg", "per";
  status = "disabled";

ecspi2: ecspi@0200c000 {

ecspi3: ecspi@02010000 {

ecspi4: ecspi@02014000 {

Generic configuration for all four ECSPI peripherals you can find in imx6ul.dtsi file.

Documentation for all SPI related items configured in this file you can find in fsl-imx-cspi.txt file in the kernel documentation.

&iomuxc {
  pinctrl_ecspi1: ecspi1grp {
    fsl,pins = <
      MX6UL_PAD_CSI_DATA04__ECSPI1_SCLK   0x1b0b0
      MX6UL_PAD_CSI_DATA05__GPIO4_IO26    0x1b0b0
      MX6UL_PAD_CSI_DATA06__ECSPI1_MOSI   0x1b0b0
      MX6UL_PAD_CSI_DATA07__ECSPI1_MISO   0x1b0b0

SPI @ liteboard pinout

SPI @ liteboard pinout

To enable SPI on liteboard we have to configure IOMUX Controller to enable SPI pins for this board:

  • CSI_DATA04 as Serial Clock,
  • CSI_DATA05 as Slave Select,
  • CSI_DATA06 as Master Output Slave Input,
  • CSI_DATA07 as Master Input Slave Output.
&ecspi1 {
  pinctrl-names = "default";
  pinctrl-0 = <&pinctrl_ecspi1>;
  cs-gpios = <&gpio4 26 GPIO_ACTIVE_LOW>;
  status = "okay";

  spidev0: spi@0 {
    compatible = "spidev";
    reg = <0>;
    spi-max-frequency = <5000000>;

As a Slave Select pin we can use any of i.MX6UL pin therefore it must be defined by the user. Here as Slave Select we are using GPIO4[26].

In this example we will allow userspace application to communicate directly with SPI slave device therefore device tree contains one SPI child node spidev0. During boot kernel driver SPI_SPIDEV will register /dev/spidev0.0 device which can be accessed by any userspace application.

In addition spidev0 node defines maximal frequency for defined SPI interface - here 500kHz.

To compile spidev driver please select kernel option CONFIG_SPI_SPIDEV located in

-> Device Drivers
  -> SPI support
    -> User mode SPI device driver support

Please check spi-bus.txt file to check how to configure - via device tree - other SPI parameters.

Buildroot allows you build two SPI test tools:


Buildroot tree location

-> Target packages
  -> Debugging, profiling and benchmark
    -> spidev_test

Source code

Application source code is available here.

Loopback test

Please connect MISO and MOSI pins together and request spidev_test application to send and then receive default data package via SPI interface.

# spidev_test -D /dev/spidev0.0  -v
spi mode: 0x0
bits per word: 8
max speed: 500000 Hz (500 KHz)
TX | FF FF FF FF FF FF 40 00 00 00 00 95 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 0D  | ......@....�..................�.
RX | FF FF FF FF FF FF 40 00 00 00 00 95 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 0D  | ......@....�..................�.

Other options

Please check application help to see available options.

Usage: spidev_test [-DsbdlHOLC3]
  -D --device   device to use (default /dev/spidev1.1)
  -s --speed    max speed (Hz)
  -d --delay    delay (usec)
  -b --bpw      bits per word
  -i --input    input data from a file (e.g. "test.bin")
  -o --output   output data to a file (e.g. "results.bin")
  -l --loop     loopback
  -H --cpha     clock phase
  -O --cpol     clock polarity
  -L --lsb      least significant bit first
  -C --cs-high  chip select active high
  -3 --3wire    SI/SO signals shared
  -v --verbose  Verbose (show tx buffer)
  -p            Send data (e.g. "1234\xde\xad")
  -N --no-cs    no chip select
  -R --ready    slave pulls low to pause
  -2 --dual     dual transfer
  -4 --quad     quad transfer


Buildroot tree location

-> Target packages
  -> Hardware handling
    -> spi-tools

Source code

See spi-tools on GitHub.


This application can be used to read/set current spidev configuration.

Read current SPI configuration
# spi-config -q -d /dev/spidev0.0
/dev/spidev0.0: mode=0, lsb=0, bits=8, speed=5000000
Set SPI configuration

To configure SPI to use mode = 2 (CPOL=1, CPAH=0) please use following command.

# spi-config -m 2 -d /dev/spidev0.0

Please read application help to see other options.

# spi-config --help
usage: spi-config options...
    -d --device=<dev>  use the given spi-dev character device.
    -q --query         print the current configuration.
    -m --mode=[0-3]    use the selected spi mode:
             0: low iddle level, sample on leading edge,
             1: low iddle level, sample on trailing edge,
             2: high iddle level, sample on leading edge,
             3: high iddle level, sample on trailing edge.
    -l --lsb={0,1}     LSB first (1) or MSB first (0).
    -b --bits=[7...]   bits per word.
    -s --speed=<int>   set the speed in Hz.
    -h --help          this screen.
    -v --version       display the version number.


spi-pipe allows you to send and receive data simultaneously.

Send data via SPI interface

To send string foo via SPI interface you can use following command

# echo "foo" | spi-pipe -d /dev/spidev0.0
Read data via SPI interface

To read data received via SPI interface plse use following command

# spi-pipe -d /dev/spidev0.0 < /dev/zero | cat
More options

To see other use cases please check spi-tools README file.
