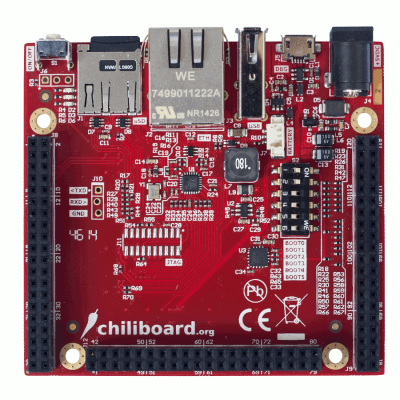

chiliboard

Evaluation board for chiliSOM.

Features

  • Small size industrial single board computer basedon chiliSOM module
  • 10/100 Mb Ethernet, RJ45
  • USB 2.0
  • microUSB for power supply and serial debug
  • μSDcard slot
  • 3 x 40 Pinsfor expansion connectors
  • Boot configuration DIP switch
  • JTAG port
  • Debug header
  • 3 LEDs
  • Li-Ion battery connector
  • Dedicated power output for LCDbacklight
  • Build in battery charger and power management controller
  • 5V power supply
  • Compatiblewith chiliboard expansion sandwiches

chiliboard Premium

chiliboard Professional

chiliboard Basic
